Diodes are widely used and can be found on almost most circuit boards. Today, let's talk about the characteristics and markings of commonly used diode tubes.

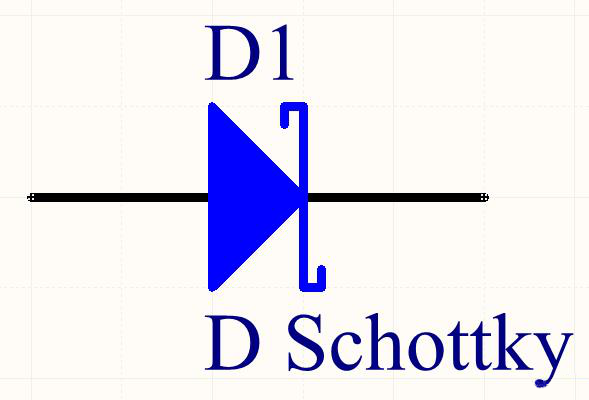

1 Schottky diode

Schottky diode (Schottky), also known as Schottky barrier diode (SBD for short), is a low-power, ultra-high-speed semiconductor device.

The most notable feature is that the reverse recovery time is extremely short (can be as small as a few nanoseconds) and the forward voltage drop is only about 0.4V. They are mostly used as high-frequency, low-voltage, high-current rectifier diodes, freewheeling diodes, and protection diodes. They are also used as rectifier diodes and small-signal detection diodes in microwave communication and other circuits. It is common in communication power supplies, frequency converters, etc.

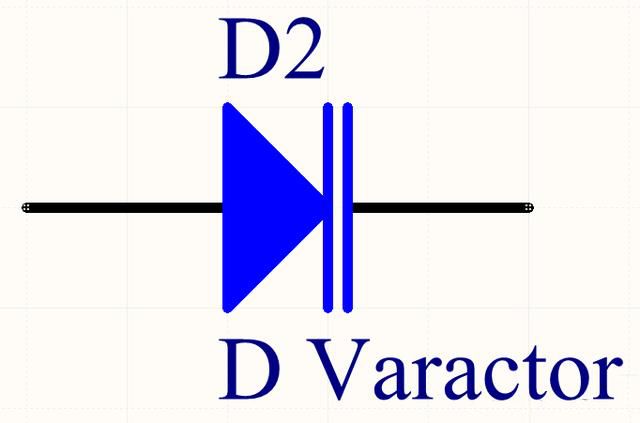

2 Varactor diode

Varactor, also known as "variable reactance diode", is made by utilizing the characteristic that the junction capacitance changes with the applied voltage when the pN junction is reverse biased.

When the reverse bias voltage increases, the junction capacitance decreases, and on the contrary, the junction capacitance increases. The capacitance of the varactor diode is generally small, and its maximum value is tens of picofarads to hundreds of picofarads. The ratio of the maximum area capacitance to the minimum capacitance is approximately is 5:1. It is mainly used in high-frequency circuits for automatic tuning, frequency modulation, phase adjustment, etc.

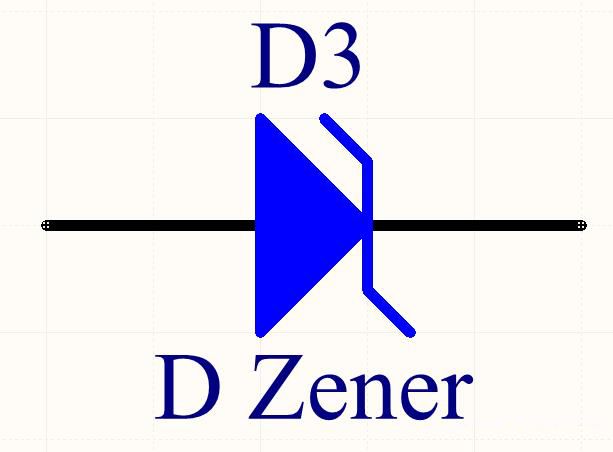

3 Zener diode

The voltage stabilizing diode uses the reverse breakdown state of the pn junction, the phenomenon that the current can change within a wide range while the voltage remains basically unchanged, to create a diode with a voltage stabilizing function.

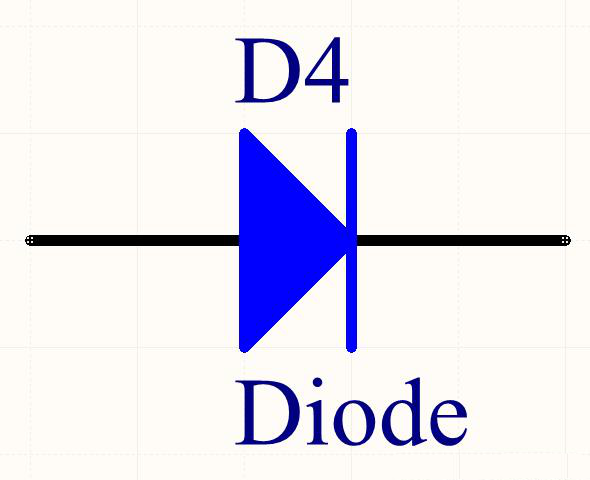

4 Ordinary diode

Ordinary diodes are one of the most commonly used electronic components. Its biggest characteristic is that it conducts electricity in one direction, that is, current can only flow in one direction of the diode. The functions of the diode include rectifier circuits, detector circuits, voltage stabilizing circuits, and various modulations. circuit.

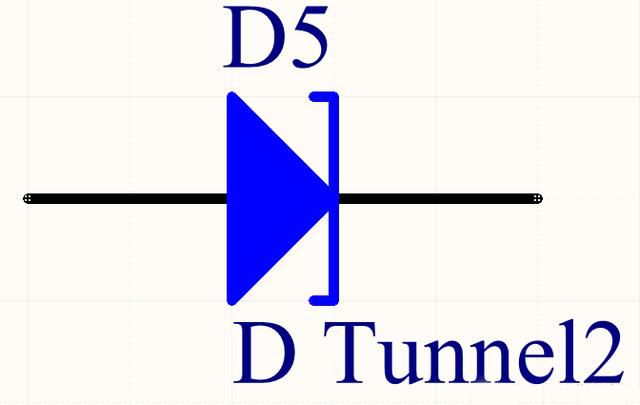

5 Tunnel diode

Tunnel diode, also known as Esaki diode, is a crystal diode with tunnel effect current as the main current component.

Its advantages are good switching characteristics, fast speed and high operating frequency. It is mostly used in some switching circuits or high-frequency oscillation circuits.

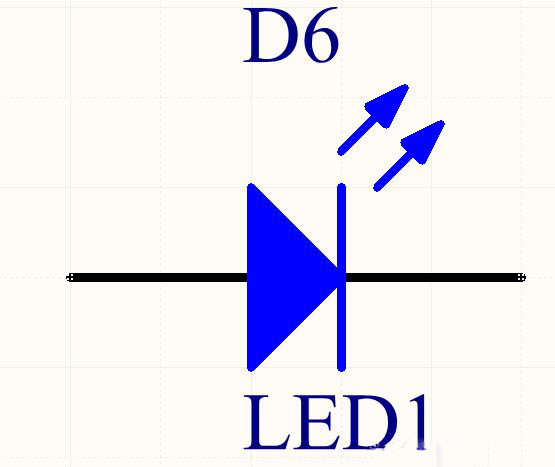

6 led

Light-emitting diodes can radiate visible light when electrons and holes recombine, so they can be used to make light-emitting diodes.

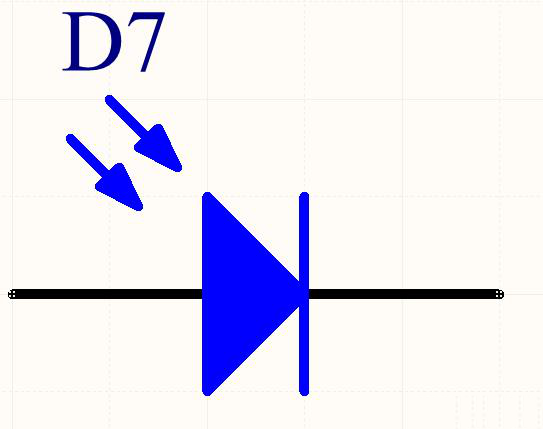

7 Infrared receiving diode

Infrared receiving diodes are also called infrared photodiodes.
